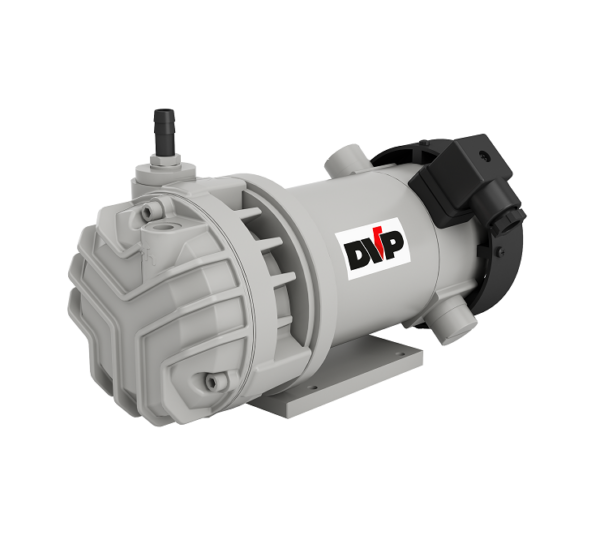

SC 5CC
SC 5CC direct current oil-free rotary vane vacuum pump has been developed for use for those industrial applications that require an oil -free operation in a restricted but sufficiently ventilated space. The 24V DC motor is equipped with externally reachable connector and brush holder, facilitating connection and maintenance; moreover, the motor is provided with an anti-interference device inside (complying with 2004/108/CE – EMC Directive).
The SC 5CC pump includes the FKM gasket positioned to assure a hermetic seal and a long operating time. The SC 5CC pump can also operate as a compressor.
The SC 5CC pump is equipped with:
- Non-return valve at the inlet
- Silencer at the outlet
- Rotor and pump body NPO treated to withstand oxidation
Main application fields: suction pads lifting machinery of non-magnetic items like aluminium, glass, marble; pollutant sampling and analysis.
| Nominal capacity | Total final pressure (Abs.) | Maximum overpressure | Motor power | |
| m³/h | mbar (Abs.) | bar | kW | |
| SC 5CC | 2,9 | 112,5/25,50 | 0,1 | 0,09 |
