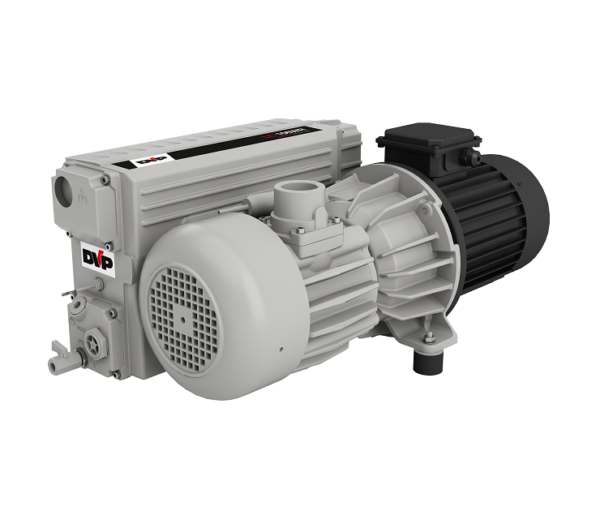

LC 106WR / LC 151WR
LC 106WR and LC 151WR lubricated rotary vane vacuum pumps have the same features as LC 106 and LC 151 pumps, but they are equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use these pumps in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used. The LC 106WR and LC 151WR are suitable for continuous suction within a pressure range from 400 to 4 mbar (Abs.).
The LC 106WR and LC 151WR pumps are equipped with:
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas ballast continuously working
- Oil level switch
- Shock mounts
- Flexible transmission coupling
- Pack of SW100 oil
Main application fields: vacuum packaging machines; bag filling machines; dental field; printing and paper industry; CNC marble and glass machines; vacuum lifting machines; workshop equipment.
| Nominal capacity | Maximum water vapour pumping rate | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | kg/h | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 106WR | 106 / 127 | 3,2 |
4
|
2,2 / 2,7 |
| LC 151WR | 151 / 181 | 5 |
4
|
3,3 / 3,7 |
