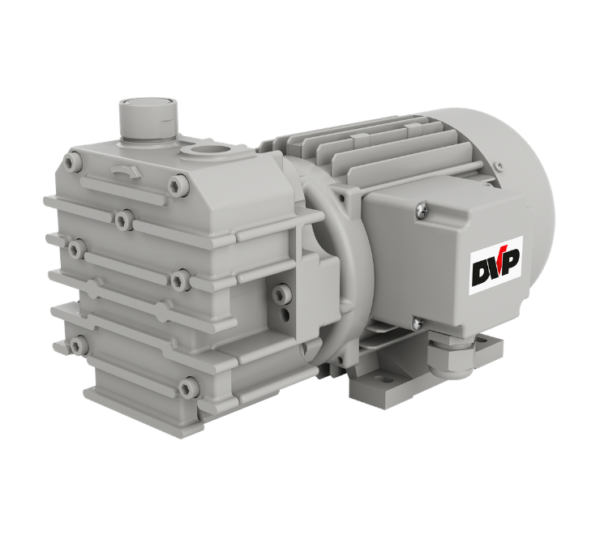

SB 10 / SB 10TV / SB 12
Limited weight and dimension are possible by the monoblock industrial design type with the rotor directly assembled on the motor shaft. Mainly built with light-weight alloy, the SB 10, SB 10TV and SB 12 oil-free rotary vane vacuum pumps can be fitted in places where little room is available, but in which ventilation is good. The cooling of the pumps is ensured by the motor fan. The SB 10 and SB 12 pumps can work as compressor up to a pressure 0.6 bar. The SB 10TV ensures perfect air tightness thanks to special gaskets.
This pump can be used in plant with sealed circuit thanks its proper configuration.
The SB 10, SB 10TV and SB 12 pumps are equipped with:
- Protective filter at the inlet
- Silencer at the outlet (only SB 10 and SB 12)
Main application fields: food and beverage, construction industry, packaging, plastic, rubber, resin, analytical field, printing, paper industry, silk-screen printing, wood presses, suction lifting machines, pollutant sampling and analysis.
| Nominal capacity | Total final pressure(Abs.) | Motor power | |
| m³/h 50 Hz / 60 Hz | mbar (Abs.) | kW | |
| SB 10 | 10/12 | 120 | 0,37 / 0,45 |
| SB 10 TV | 10/12 | 120 | 0,37 / 0,45 |
| SB 12 | 12/14 | 120 | 0,37 / 0,45 |
