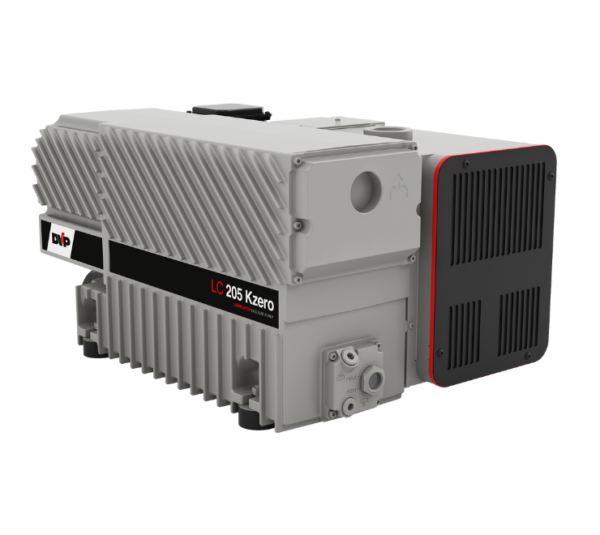

LC 205 KZERO / LC 305 KZERO
The new LC 205 Kzero and LC 305 Kzero series of lubricated rotary vane vacuum pumps is specially designed for metal washing machines, because it is highly resistant to the solvents that oil comes into contact with. In fact, the special LC 205 Kzero and LC 305 Kzero pumps are equipped with FKM check valve rubbers giving greater strength and less deterioration in contact with oil and solvent. The supplied oil is also highly compatible with the solvents commonly found in metal washing machines.
The LC 205 Kzero and LC 305 Kzero pumps are equipped with:
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas Ballast
- Shock mounts
- il filter with by-pass
- Flexible transmission coupling
- SYN HP 110 Oil Pack
Main application fields: metal washing machines.
| Nominal capacity | Maximum water vapour pumping rate | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | kg/h | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 205 Kzero | 205 / 245 | 3,5 |
0,3
|
5,5 / 6,6 |
| LC 305 Kzero | 305 / 365 | 5 |
0,3
|
7,5 / 9 |
