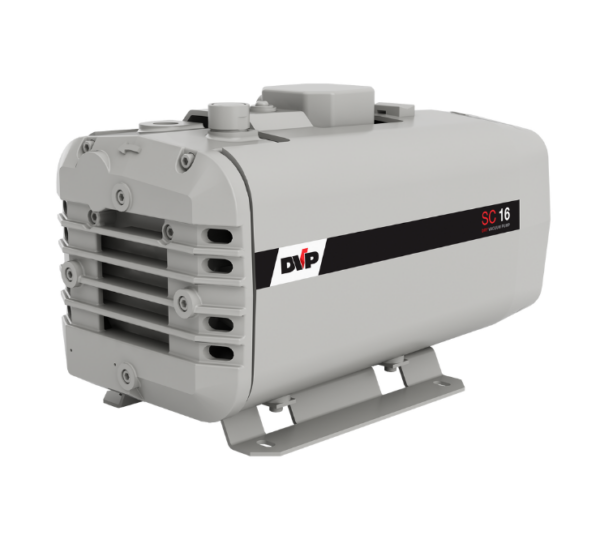

SC 16 / SC 25 / SC 40
SC 16, SC 25 and SC 40 oil-free rotary vane vacuum pumps have an industrial monobloc design with the rotor directly assembled on the motor shaft. This special design makes them extremely compact and reliable. The powerful rear centrifugal fan ensures the cooling of the pumps.
The SC 16, SC 25 and SC 40 pumps can also operate as a compressors.
The SC 16, SC 25 and SC 40 pumps are equipped with:
Protective filter at the inlet
- Silencer at the outlet
Main application fields: suction cup movements, automatic machines, packing machines, woodworking machines, vacuum presses for wood or plastic, money counting machines, plaster mixing, painting systems and pneumatic conveying.
| Nominal capacity | Total final pressure(Abs.) | Motor power | |
| m³/h 50 Hz / 60 Hz | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| SC 16 | 16 | 120 | 0,75 / 0,90 |
| SC 25 | 25 | 120 | 0,75 / 0,90 |
| SC 40 | 40 | 120 | 1,30 / 1,50 |
