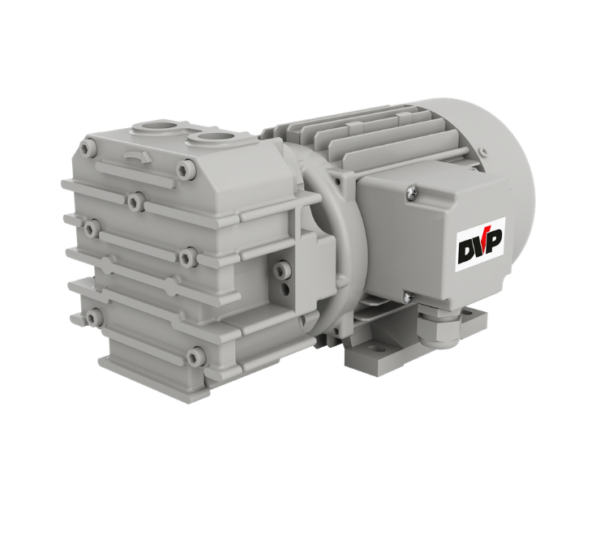

CB 10 / CB 12
The industrial monobloc design with the rotor directly assembled on the motor shaft and the use of light-weight alloys mean that CB 10 and CB 12 compressors are of limited size and weight and can be fitted into a limited space, provided there is good ventilation.
Compressor cooling is ensured by an integral motor fan.
The CB 10 and CB 12 compressors are equipped with:
- Protective filter at the inlet
Main application fields: construction industry.
| Nominal capacity | Maximum overpressure | Motor power | |
| m³/h 50 Hz / 60 Hz | bar 50 Hz / 60 Hz | kW 50 Hz / 60 Hz | |
| CB 10 | 10 / 12 | 0,6 / 0,6 | 0,37 / 0,45 |
| CB 10 | 12 / 14 | 0,6 / 0,6 | 0,37 / 0,45 |
