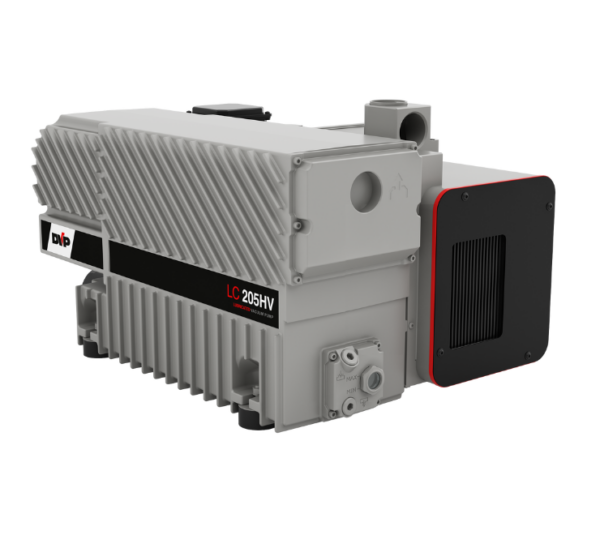

LC 205HV / LC 305HV
The new LC 205 and LC 305 lubricated vane vacuum pumps are available in a special HV version, suitable for packaging lines where the pump is located inside boxes. The direction of the cooling air outlet flow is in fact downwards, so the hot air does not stagnate inside the housing. In the LC 205HV and LC 305HV versions, the new suction fitting has a double connection to the operating line, both frontally and vertically.
The LC 205HV and LC 305HV pumps are equipped with:
- Suction fitting with double connection
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas ballast with manual cut-off valve
- Shock mounts
- Oil filter with by-pass
- Flexible transmission coupling
Main application fields: food packaging.
| Nominal capacity | Maximum water vapour pumping rate | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | kg/h | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 205HV | 205 | 2,1 |
0,1
|
5,5 / 6,6 |
| LC 305HV | 305 | 3,5 |
0,1
|
7,5 / 9 |
