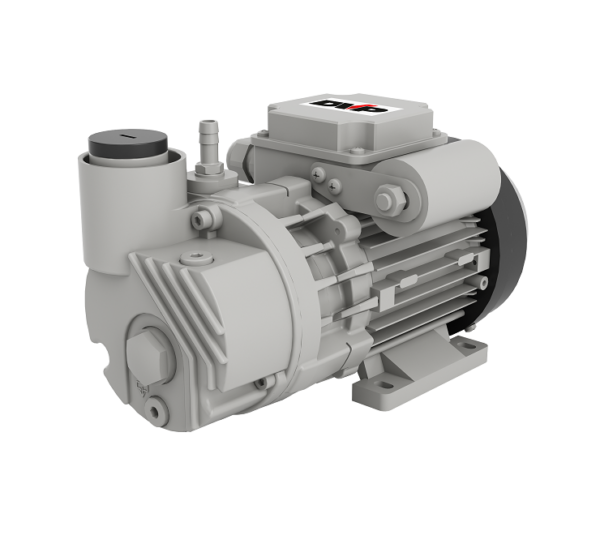

LC 2 / LC 4
LC 2 and LC 4 lubricated rotary vane vacuum pumps have limited dimensions and moderate noise level. The LC 2 and LC 4 pumps are adapted for the evacuation of small sealed containers and, LC 2 only, the vacuum continues between a pressure of 500 and 10 mbar (Abs.).
The LC 2 and LC 4 pumps are equipped with:
- Oil check valve, integrated into their structure, which guarantees the isolation of the equipment when the pump is stopped under vacuum
- FKM gasket positioned to assure a hermetic seal and a long operating time
- Exhaust mist eliminator
- Gravity oil recovery valve
- Rotor and pump body NPO treated, to increase hardness and to withstand oxidation caused by sucking air containing high percentage of vapour
Thermal protector (1~ only)
Main application fields: vacuum packing machines; surgical extraction for dentistry and hospitals; mixing and dosage of resin for dentistry; silk screen printing machines; automatic feeder machines for book-binding; wood presses; drilling machines for use in the construction industry.
| Nominal capacity | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 2 | 2 / 2,5 | 10 | 0,12 / 0,15 |
| LC 4 | 4 / 4,8 | 2 | 0,12 / 0,15 |
