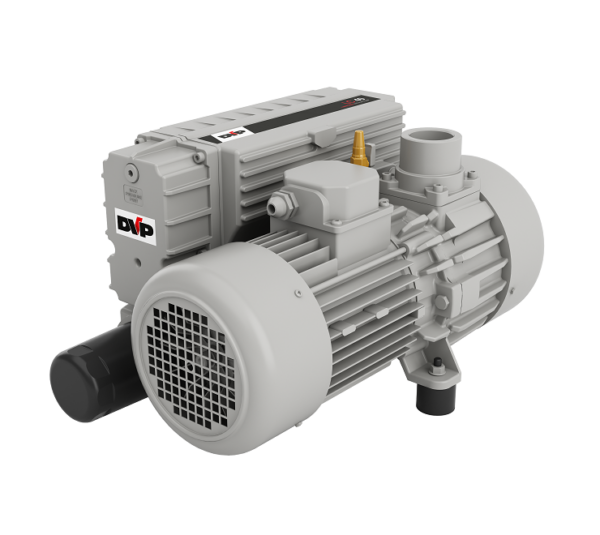

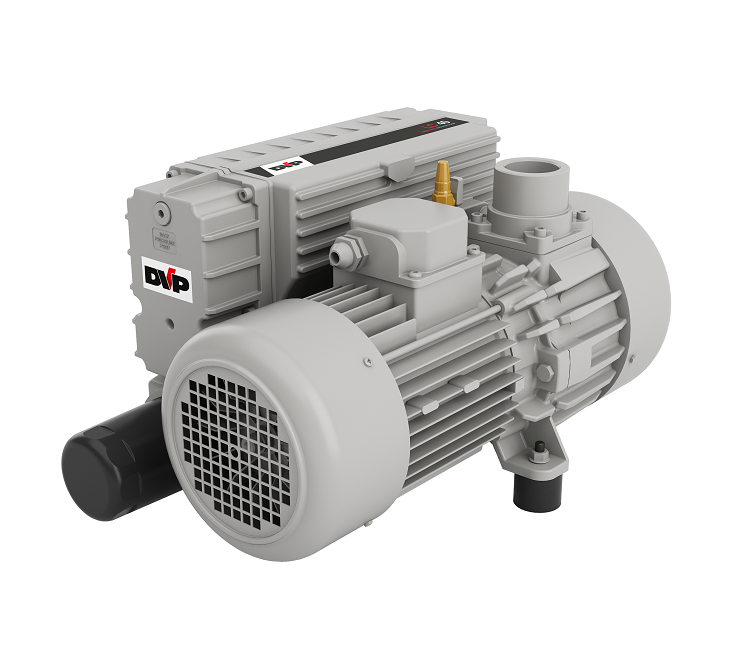

LC 40/LC 60
Compact design, low noise level, ease of oil check and refill and simplified maintenance operation, are the main features of LC 40 and LC 60 lubricated rotary vane vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapors at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stops under vacuum. Only hazardous parts have been housed in order to improve both the cooling and the appearance of the pumps.
The LC 40 and LC 60 pumps are suitable for continuous operation within a pressure range from 400 to 0,1 mbar (Abs.).
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas ballast with manual cut-off valve
- Shock mounts
- Oil filter with by-pass
- Pack of BV68 oil
Main application fields: metal polishing machines, vacuum welding of precious metals, packing machines, glass and marble lifting systems, vacuum bottling machines, packaging machines, loading and paper feeding, labelling, equipment for suction handling, automatic machines, machines for vacuum packed food-processing and mixing, vacuum thermal moulding, garage equipment, centralised vacuum plant installations.
| Nominal capacity | Maximum water vapour pumping rate | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | kg/h | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 40 | 40 / 48 | 0,5 |
0,1
|
1,1 / 1,35 |
| LC 60 | 60 / 72 | 0,5 |
0,1
|
1,5 / 1,8 |
