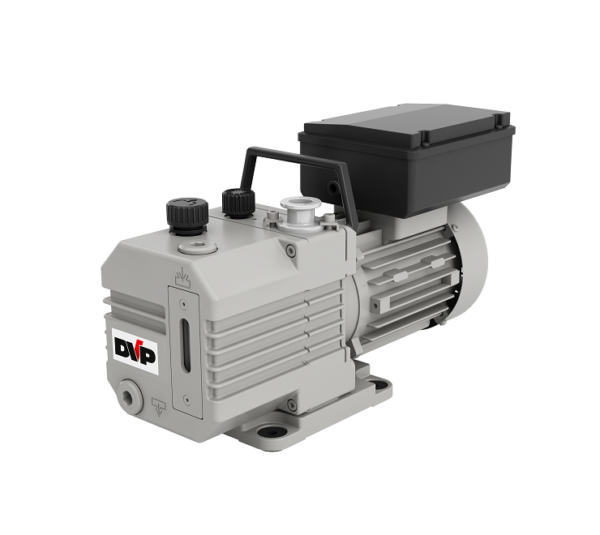

DB 2D
Very high reliability, vibration free, low noise level and easy maintenance are the main features of DB 2D double stage high vacuum pump that make it suitable for laboratories, research institutes and universities. A coupling drive connecting motor and pump ensures reliable operation, long life and easy maintenance. Moreover, the DB 2D pump is ideal for use as backing pump on ultra-high vacuum units.
The DB 2D pump is equipped with:
- On/off switch (1~ only)
- Amperometric circuit breaker (manual reset; 1~ only)
- Cable with schuko plug (1~ only)
- Gas Ballast
- Handle for transport
- Shock mounts
- Pack of SW60 oil
- Solenoid-pneumatic non-return system
Main application fields: laser, leak detectors, freeze dryers, mass spectrometers and chromatography, laboratory autoclaves, microscopy, space simulators, under vacuum distillers, gel dryers, centrifuges and laboratory autoclaves.
| Nominal capacity | Total final pressure(Ass.) | Stages | Motor power | |
| m³/h 50 Hz / 60 Hz | mbar (Ass.) | kW 50 Hz / 60 Hz | ||
| DB 2D | 2 / 2,4 | 0,05 | 2 | 0,25 / 0,3 |
