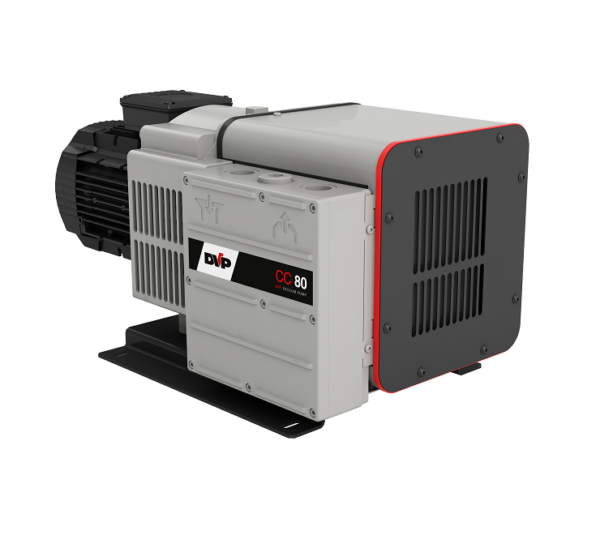

CC 60 / CC 80
CC 60 and CC 80 oil-free rotary vane vacuum compressors have a powerful fan installed between the pump housing and the motor that ensures optimal cooling and a sturdy and compact housing protection that keeps the noise level extremely low. The highly durable graphite vanes and the low internal operating temperature guarantee resistant and long-lasting vanes. Maintenance has never been so easy thanks to the removable front grid, which allows direct access to the vanes, for quick replacement without disassembling the complete conveyer carter.
With the optimization of the suction and discharge phases, energy efficiency is increased: from atmospheric pressure to absolute final pressure, energy consumption does not change.
The CC 60 and CC 80 compressors are equipped with:
- Protective filter at the inlet
Main application fields: oxygenation and purification of wastewater, landfill sites, solar panels construction.
| Nominal capacity | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | bar 50 Hz / 60 Hz | kW 50 Hz / 60 Hz | |
| CC 60 | 60 / 70 | 1 / 1,2 | 2,2 / 3 |
| CC 80 | 80 / 90 | 1,2 / 1 | 3,4 / 4 |
