RD 2D

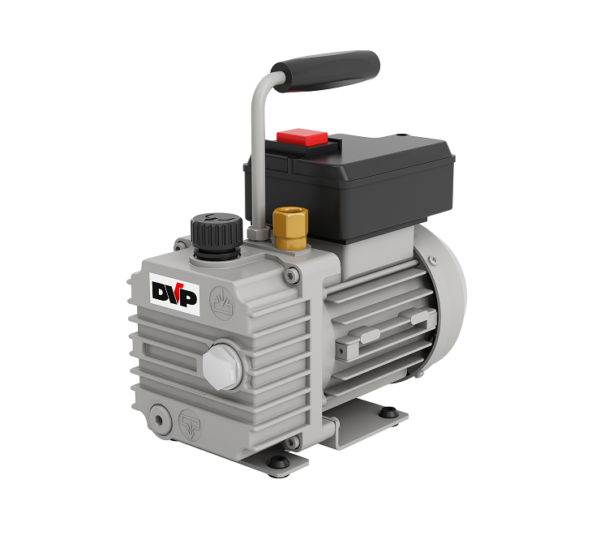

RD 2D double stage high vacuum pump is specifically designed for refrigeration and conditioning applications. The double stage construction provides optimal final pressure. The industrial monobloc design with the rotor directly assembled on the motor shaft and the use of light-weight alloys mean that the RD 2D pump is of limited size and weight and can be fitted into a limited space, provided there is good ventilation or that it is assembled on mobile equipment.
The RD 2D pump is equipped with:
- Thermal protector (1~ only)
- Handle for transport
- On/off switch (1~ only)
- Cable with schuko plug (1~only)
- Oil check valve
- Shock mounts
Main application fields: refrigeration and air-conditioning systems, both in the residential and automotive sectors.
| Nominal capacity | Total final pressure | Stages | Motor power | |
| m³/h 50 Hz / 60 Hz | mbar (Ass.) | kW 50 Hz / 60 Hz | ||
| RD 2D | 1,8/2 | < 0,5 | 2 | 0,12 / 0,15 |
