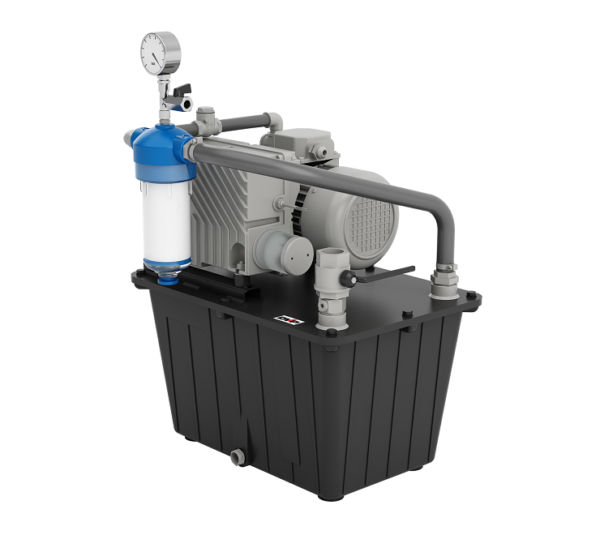

CPV 12/25 – 25/25 – 40/25 – 60/25
CPV 12/25 – 25/25 – 40/25 – 60/25 industrial vacuum systems with liquid separator have been designed for use on glass and marble machinery, and on machines in which it is possible to intake non-aggressive liquids (normally cutting fluids). These CPV systems are complete, compact units and are normally connected to the user machine by a hose. A ball valve at the tank inlet allows it to be cut off from the system for maintenance operations. The lubricated rotary vane vacuum pumps used in these CPV systems belong to the WR series, which has a built-in high-efficiency gas ballast device, which allows you to separate the remaining condensation from the oil and expel it with the pump stopped.
The CPV 12/25 – 25/25 – 40/25 – 60/25 industrial vacuum systems are equipped with:
- Anodized 25 liter tank
- Galvanized removable cover
Main application fields: marble and glass working machines.
| Pump type | Tank capacity | Nominal capacity | Total final pressure (Abs.)(Ass.) |
Motor power | |
| m³/h 50 Hz / 60 Hz | dm3 | m3/h 50 Hz / 60 Hz | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| CPV 12/25 | 12/14 | 25 | LC 12 |
5
|
0,45 / 0,54 |
| CPV 25/25 | LC 25WR | 25 | 25 / 29 |
5
|
0,75 / 0,90 |
| CPV 40/25 | LC 40WR | 25 | 40 / 48 |
5
|
1,1 / 1,35 |
| CPV 60/25 | LC 60WR | 25 | 60 / 75 |
5
|
1,5 / 1,8 |
