LC 25WR

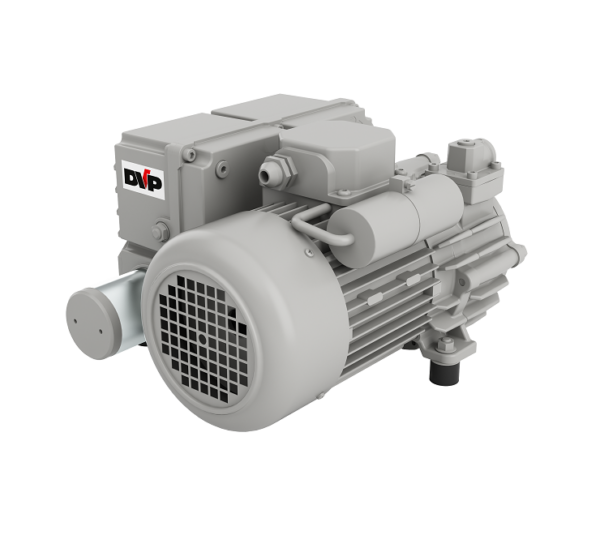

LC 25WR lubricated rotary vane vacuum pump has the same features as LC 25 pump, but it is equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 25WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used. The LC 25WR is suitable for continuous suction within a pressure range from 400 to 4 mbar (Abs.).
The LC 25WR pump is equipped with:
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas ballast continuously working
- Oil level switch
- Shock mounts
- Thermal protector (1~ only)
- Pack of SW60 oil
Main application fields: vacuum packing machines; precious metal vacuum casting machines; dental field; graphic and paper industry; CNC marble and glass machines; vacuum lifting machines; garage equipment.
| Nominal capacity | Maximum water vapour pumping rate | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | kg/h | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 25WR | 25 / 29 | 1,1 | 4 | 0,75 / 0,9 |
