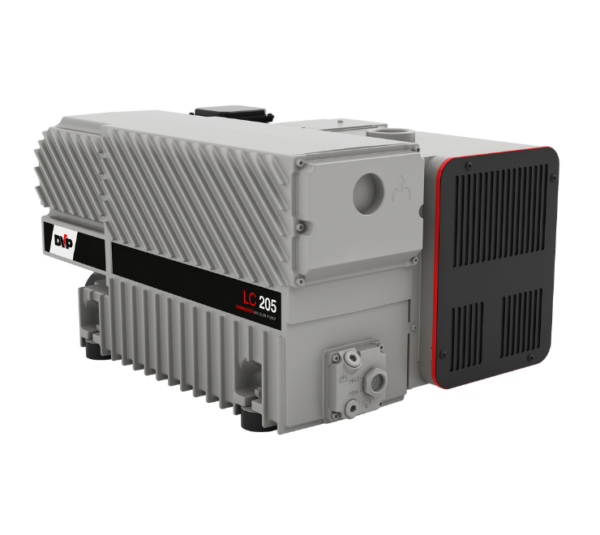

LC 205 / LC 305
The LC 205 and LC 305 oil-lubricated rotary vane vacuum pumps are upgraded pumps in design and performance. Among the main innovations, greater efficiency in the process of separating oil from air ensures a smokeless flow of exhaust air. Low noise is enhanced, as well as energy efficiency, thanks to the IE3 efficiency class motors. The gas ballast has a manual override valve, designed to achieve a higher vacuum level when required. The ease of maintenance has also been improved: the oil separator filter is unique and can be replaced in a few simple steps.
The LC 205 and LC 305 pumps are equipped with:
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas Ballast with manual override valve
- Shock mounts
- Oil filter with by-pass
- Flexible transmission coupling
- BV100 (SW100) Oil Pack
Main application fields: food processing and packaging; non-food packaging.
| Nominal capacity | Maximum water vapour pumping rate | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | kg/h | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 205 | 205 / 245 | 3,5 |
0,1
|
5,5 / 6,6 |
| LC 305 | 305 / 365 | 5 |
0,1
|
7,5 / 8,6 |
