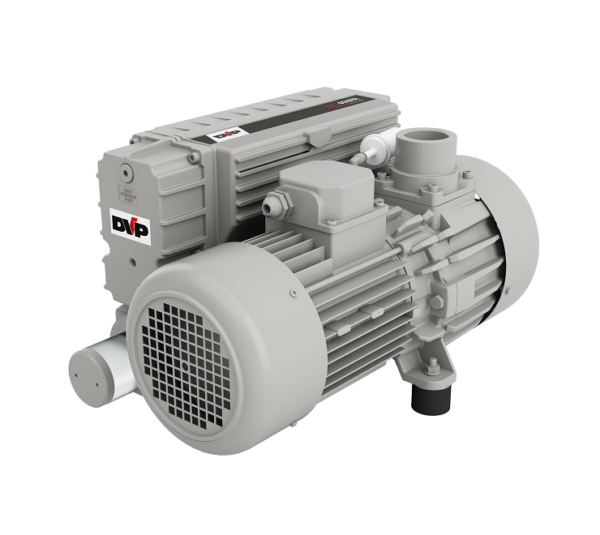

LC 40WR/ LC 60WR
LC 40WR and LC 60WR lubricated rotary vane vacuum pumps have the same features as LC 40 and LC 60 pumps, but they are equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 40WR and LC 60WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used.
The LC 40WR and LC 60WR pumps are equipped with:
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas ballast continuously working
- Shock mounts
- Oil level switch
- Pack of SW60 oil
Main application fields: vacuum packaging machines; bag filling machines; dental field; printing and paper industry; CNC marble and glass machines; vacuum lifting machines; workshop equipment.
| Nominal capacity | Maximum water vapour pumping rate | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | kg/h | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 40WR | 40 / 48 | 1,3 |
4
|
1,1 / 1,35 |
| LC 60WR | 60 / 72 | 2,4 |
4
|
1,5 / 1,8 |
