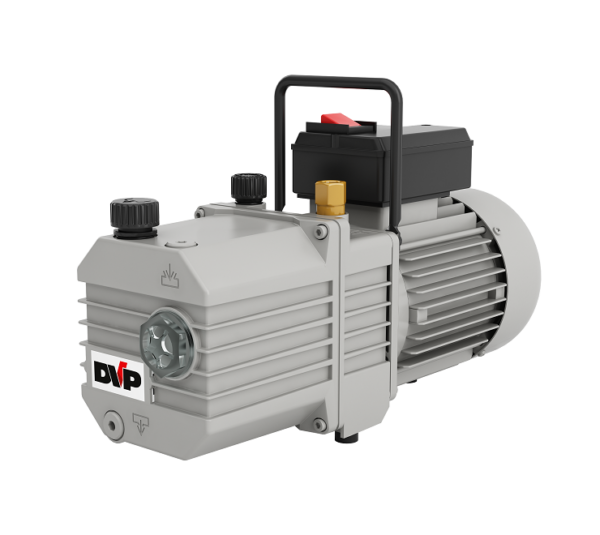

RC 8M / RC 8D
RC 8M single stage and RC 8D double stage high vacuum pumps are specifically designed for the air conditioning and refrigeration sector and for laboratory applications. The single or double stage version provide optimal final pressure. A coupling drive connecting motor and pump ensures reliable operation, long life and easy maintenance. In the case start-ups under vacuum, a three-way solenoid valve must be installed, otherwise a specific version must be requested.
The RC 8M and RC 8D pumps are equipped with:
- Thermal protector (1~ only)
- Handle for transport
- Gas ballast
- Start/Stop switch (1~ only)
- Power cord with schuko plug (1~ only)
- Oil check valve (RC 8M)
- Oil check system (RC 8D)
- Shock mounts
Main application fields: refrigeration and air-conditioning systems, both in the residential and automotive sectors, laboratory applications.
| Nominal capacity | Total final pressure | Stages | Motor power | |
| m³/h 50 Hz / 60 Hz | mbar (Ass.) | kW 50 Hz / 60 Hz | ||
| RC 8M | 8 / 9,5 | 0,1 | 1 | 0,37 / 0,37 |
| RC 8D | 8 / 9,5 | 0,01 | 1 | 0,37 / 0,37 |
