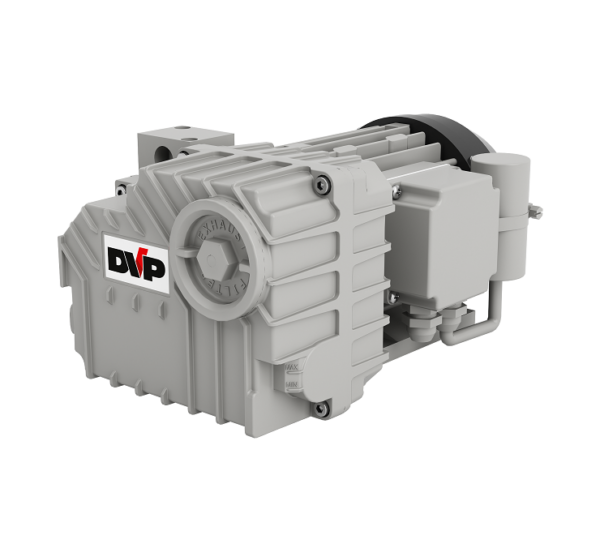

LC 8
The limited dimensions and the low final pressure (Abs.) attainable are the main features of LC 8 lubricated rotary vane vacuum pump. An effective damping and recovery system in-built in the tank prevents any oil vapors at the exhaust. Moreover, a special sealing device prevents suck-back, should pump be stopped under vacuum. The intake can also be adjusted by the user, thanks to a special fitting.
The LC 8 pump is equipped with:
- Oil check valve
- Exhaust mist eliminator
- Gravity oil recovery valve
- Thermal protector (1~ only)
- Pack of BV32 oil
Main application fields: filling and sealing machines, food packing and food processing, and production of PET containers.
| Nominal capacity | Total final pressure | Motor power | |
| m³/h 50 Hz / 60 Hz | mbar (Ass.) | kW 50 Hz / 60 Hz | |
| LC 8 | 8 / 9 | 2 | 0,25 / 0,30 |
